Product Description |

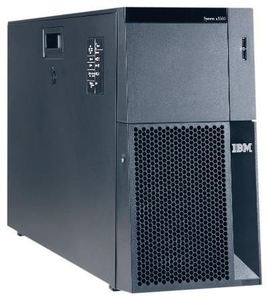

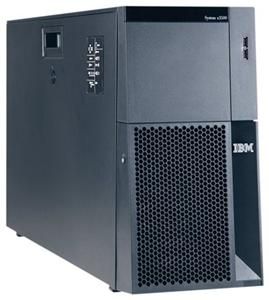

IBM System x3500 7977 - Xeon E5440 2.83 GHz |
| |
EAN |
5051045022064
|
| |
Form Factor |
Tower - 5U |
| |
Manufacturer Warranty |
3 years warranty - on-site (24 months implied warranty by computeruniverse ) |
| |
Dimensions (WxDxH) |
21.6 cm x 70 cm x 44 cm |
| |
Weight |
45.9 kg |
| |
Processor |
1 x Intel Xeon E5440 / 2.83 GHz (Quad-Core) |
| |
Hard Drive |
None. |
| |
Networking |
Network adapter - PCI Express - Ethernet, Fast Ethernet, Gigabit Ethernet |
| |
Power |
AC 120/230 V (50/60 Hz) |
| |
RAM |
1 GB (installed) / 48 GB (max) - DDR2 SDRAM - ECC Chipkill - 667 MHz - PC2-5300 |
| |
Storage Controller |
RAID (Serial Attached SCSI) (ServeRAID-8k) ; Serial Attached SCSI (Serial ATA-150 / SAS) - PCI Express (Adaptec AIC-9580W) |
| |
Graphics Controller |
PCI - ATI ES1000 |
| |
Type |
Server |
| |
Cache Memory |
12 MB L2 Cache |
| |
Optical Storage |
DVD-ROM |
| |
Monitor |
None. |
| |
Cache Per Processor |
12 MB |
| |
Processor Main Features |
Intel Extended Memory 64 Technology, Intel Execute Disable Bit, Intel Virtualization Technology |
| |
Server Storage Bays |
Hot-swap 3.5" |
| |
Server Scalability |
2-way |
| |
Power Redundancy |
Optional |
| |
Video Memory |
32 MB |
| |
Windows Server Certified |
This server is tested, tuned and certified for Windows Server 2008 R2 with OEM-branded hardware. Purchase a Reseller Option Kit to have your server solution pre-loaded. |
|
| Mainboard |
| |
Data Bus Speed |
1333 MHz |
| |
Chipset Type |
Intel 5000P |
| Storage Controller (2nd) |
| |
RAID Level |
RAID 0, RAID 1, RAID 5, RAID 10 |
| |
Controller Interface Type |
Serial ATA-150 / SAS |
| |
Type |
1 x Serial Attached SCSI - integrated - PCI Express |
| |
Storage Controller Name |
Adaptec AIC-9580W |
| Graphics Controller |
| |
Video Memory |
32 MB |
| |
Type |
PCI - integrated |
| |
Graphics Processor |
ATI ES1000 |
| Monitor |
| |
Monitor Type |
None. |
| Operating System / Software |
| |
Windows Server Certified |
This server is tested, tuned and certified for Windows Server 2008 R2 with OEM-branded hardware. Purchase a Reseller Option Kit to have your server solution pre-loaded. |
| Optical Storage |
| |
Type |
DVD-ROM - IDE |
| Cache Memory |
| |
Type |
L2 Cache |
| |
Installed Size |
12 MB |
| |
Cache Per Processor |
12 MB |
| Storage Controller |
| |
Type |
1 x RAID |
| |
Controller Interface Type |
Serial Attached SCSI |
| |
Storage Controller Name |
ServeRAID-8k |
| Environmental Parameters |
| |
Min Operating Temperature |
10 °C |
| |
Max Operating Temperature |
35 °C |
| |
Humidity Range Operating |
8 - 80% |
| Power |
| |
Installed Qty |
1 |
| |
Max Supported Qty |
2 |
| |
Power Redundancy |
Optional |
| |
Device Type |
Power supply - hot-plug |
| |
Voltage Required |
AC 120/230 V (50/60 Hz) |
| |
Power Redundancy Scheme |
1+1 (with optional power supply) |
| |
Power Provided |
835 Watt |
| Miscellaneous |
| |
Features |
Administrator password, power-on password, selectable boot, unattended boot, thermal monitoring, voltage monitoring, fan speed monitoring, predictive failure analysis (PFA) |
| |
Compliant Standards |
ACPI 2.0, FCC Class A certified, TUV GS, CISPR 22 Class A, EN 60950, IEC950, ZH1 618, CB, FCC Part 15, IEC 60950-1 |
| Networking |
| |
Data Link Protocol |
Ethernet, Fast Ethernet, Gigabit Ethernet |
| |
Features |
Wake on LAN (WoL) |
| |
Networking |
Network adapter - PCI Express - integrated |
| |
Remote Management Protocol |
IPMI 2.0 |
| |
Ethernet Controller(s) |
Broadcom BCM5721 |
| |
Remote Management Controller |
Intel Baseboard Management Controller (BMC) |
| Storage |
| |
Hard Drive |
None. |
| RAM |
| |
Upgrade Rule |
2 modules at a time |
| |
Memory Speed |
667 MHz |
| |
Installed Size |
1 GB / 48 GB (max) |
| |
Memory Specification Compliance |
PC2-5300 |
| |
Configuration Features |
2 x 512 MB |
| |
Form Factor |
FB-DIMM 240-pin |
| |
Technology |
DDR2 SDRAM - ECC Chipkill |
| |
Features |
Dual channel memory architecture, Memory Mirroring, Fully Buffered, Online Spare Memory |
| Processor |
| |
Installed Qty |
1 |
| |
Max Supported Qty |
2 |
| |
Upgradability |
Upgradable |
| |
64-bit Computing |
Yes |
| |
Processor Main Features |
Intel Extended Memory 64 Technology, Intel Execute Disable Bit, Intel Virtualization Technology |
| |
Number of Cores |
Quad-Core |
| |
Type |
Intel Xeon E5440 / 2.83 GHz |
Manufacturer Warranty (24 months implied warranty by computeruniverse ) |
| |
Service & Support |
3 years warranty |
| |
Service & Support Details |
Limited warranty - parts and labour - 3 years - on-site |
| Expansion / Connectivity |
| |
Interfaces |
4 x Hi-Speed USB - 4 PIN USB Type A (2 in front) 2 x network - Ethernet 10Base-T/100Base-TX/1000Base-T - RJ-45 2 x serial - RS-232 - 9 pin D-Sub (DB-9) 1 x parallel - IEEE 1284 (EPP/ECP) - 25 pin D-Sub (DB-25) 1 x keyboard - generic - 6 pin mini-DIN (PS/2 style) 1 x mouse - generic - 6 pin mini-DIN (PS/2 style) 1 x display / video - VGA - 15 pin HD D-Sub (HD-15) 1 x management - RJ-45 |
| |
Expansion Bays |
8 (total) / 8 (free) x hot-swap - 3.5" x 1/3H 3 (total) / 2 (free) x front accessible - 5.25" x 1/2H |
| |
Expansion Slot(s) |
2 (total) / 1 (free) x processor - LGA771 Socket 12 (total) / 10 (free) x memory - FB-DIMM 240-pin 2 (total) / 2 (free) x PCI-X / 133 MHz - full-length 2 (total) / 2 (free) x PCI Express x8 - full-length 1 (total) / 1 (free) x PCI Express x8 - half-length (x4 mode) 1 (total) / 1 (free) x PCI - half-length |
| General |
| |
Type |
Server |
| |
Height |
44 cm |
| |
Hot-Swap Bays Qty |
8 |
| |
Front Accessible Bays Qty |
3 |
| |
Built-in Devices |
Led panel |
| |
Width |
21.6 cm |
| |
Depth |
70 cm |
| |
Colour |
Stealth black |
| |
Weight |
45.9 kg |
| |
Server Scalability |
2-way |
| |
Product Form Factor |
Tower - 5U |
