Product Description |

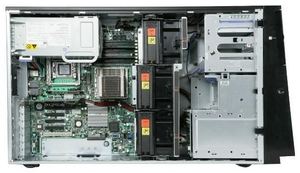

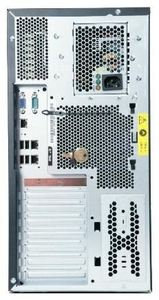

IBM System x3400 M3 7379 - Xeon E5640 2.66 GHz |
| |
EAN |
5051045046268
|
| |
Form Factor |
Tower - 5U |
| |
Manufacturer Warranty |
3 years warranty - on-site (24 months implied warranty by computeruniverse ) |
| |
Dimensions (WxDxH) |
21.8 cm x 76.7 cm x 44 cm |
| |
Weight |
27.1 kg |
| |
Processor |
1 x Intel Xeon E5640 / 2.66 GHz (Quad-Core) |
| |
Hard Drive |
None. |
| |
Networking |
Network adapter - PCI Express - Ethernet, Fast Ethernet, Gigabit Ethernet - Ethernet Ports : 2 x Gigabit Ethernet |
| |
Power |
AC 120/230 V (50/60 Hz) |
| |
RAM |
8 GB (installed) / 128 GB (max) - DDR3 SDRAM - ECC Chipkill - 1333 MHz - PC3-10600 |
| |
Storage Controller |
Serial Attached SCSI (Serial ATA-300 / SAS 2.0) - PCI Express 2.0 x8 (ServeRAID M1015) ; Serial ATA |
| |
Graphics Controller |
PCI - Matrox MGA G200e |
| |
Type |
Server |
| |
Localisation |
EMEA |
| |
Cache Memory |
12 MB L3 Cache |
| |
Optical Storage |
DVD-ROM |
| |
Monitor |
None. |
| |
OS Provided |
No operating system |
| |
Cache Per Processor |
12 MB |
| |
Processor Main Features |
Hyper-Threading Technology, Intel QuickPath Interconnect |
| |
Server Storage Bays |
Hot-swap 2.5" |
| |
Server Scalability |
2-way |
| |
Video Memory |
16 MB |
| |
Windows Server Certified |
This server is tested, tuned and certified for Windows Server 2008 R2 with OEM-branded hardware. Purchase a Reseller Option Kit to have your server solution pre-loaded. |
|
| Mainboard |
| |
Chipset Type |
Intel 5500 |
| Storage Controller (2nd) |
| |
Type |
1 x Serial ATA - integrated |
| Graphics Controller |
| |
Video Memory |
16 MB |
| |
Type |
PCI - integrated |
| |
Graphics Processor |
Matrox MGA G200e |
| Monitor |
| |
Monitor Type |
None. |
| Operating System / Software |
| |
Software |
IBM Director |
| |
OS Provided |
No operating system |
| |
Windows Server Certified |
This server is tested, tuned and certified for Windows Server 2008 R2 with OEM-branded hardware. Purchase a Reseller Option Kit to have your server solution pre-loaded. |
| Optical Storage |
| |
Type |
DVD-ROM - Serial ATA |
| Cache Memory |
| |
Installed Size |
12 MB |
| |
Cache Per Processor |
12 MB |
| |
Type |
L3 Cache |
| Storage Controller |
| |
Channel Qty |
8 |
| |
RAID Level |
RAID 0, RAID 1, RAID 10 |
| |
Controller Interface Type |
Serial ATA-300 / SAS 2.0 |
| |
Type |
1 x Serial Attached SCSI - plug-in card - PCI Express 2.0 x8 |
| |
Storage Controller Name |
ServeRAID M1015 |
| Environmental Parameters |
| |
Min Operating Temperature |
10 °C |
| |
Humidity Range Operating |
20 - 80% |
| Power |
| |
Device Type |
Power supply |
| |
Voltage Required |
AC 120/230 V (50/60 Hz) |
| |
Power Provided |
670 Watt |
| Miscellaneous |
| |
Features |
Administrator password, power-on password, selectable boot, unattended boot, unattended start mode, predictive failure analysis (PFA), automatic server restart (ASR) |
| |
Compliant Standards |
ACPI 2.0, TUV GS, CISPR 22 Class A, GOST, EN 60950, IEC950, CB, FCC Part 15, IEC 60950-1 |
| Networking |
| |
Data Link Protocol |
Ethernet, Fast Ethernet, Gigabit Ethernet |
| |
Networking |
Network adapter - PCI Express - integrated |
| |
Remote Management Protocol |
IPMI 2.0 |
| |
Ethernet Ports |
2 x Gigabit Ethernet |
| |
Ethernet Controller(s) |
Broadcom BCM5709C |
| |
Features |
Wake on LAN (WoL), ACPI support, PXE support |
| |
Remote Management Controller |
Maxim VSC452 Super Baseboard Management Controller with Integrated VGA Controller |
| Storage |
| |
Hard Drive |
None. |
| RAM |
| |
Form Factor |
DIMM 240-pin |
| |
Installed Size |
8 GB / 128 GB (max) |
| |
Configuration Features |
2 x 4 GB |
| |
Memory Speed |
1333 MHz |
| |
Features |
Registered, Memory Mirroring |
| |
Memory Specification Compliance |
PC3-10600 |
| |
Technology |
DDR3 SDRAM - ECC Chipkill |
| Processor |
| |
Installed Qty |
1 |
| |
Max Supported Qty |
2 |
| |
Number of Cores |
Quad-Core |
| |
Processor Main Features |
Hyper-Threading Technology, Intel QuickPath Interconnect |
| |
Type |
Intel Xeon E5640 / 2.66 GHz |
Manufacturer Warranty (24 months implied warranty by computeruniverse ) |
| |
Service & Support |
3 years warranty |
| |
Service & Support Details |
Limited warranty - parts and labour - 3 years - on-site - response time: next business day |
| Expansion / Connectivity |
| |
Interfaces |
2 x network - Ethernet 10Base-T/100Base-TX/1000Base-T - RJ-45 6 x Hi-Speed USB - 4 PIN USB Type A (2 front, 4 rear) 1 x serial - RS-232 - 9 pin D-Sub (DB-9) 1 x display / video - VGA - 15 pin HD D-Sub (HD-15) 1 x management - RJ-45 |
| |
Expansion Bays |
8 (total) / 8 (free) x hot-swap - 2.5" x 1/6H 3 (total) / 2 (free) x front accessible - 5.25" x 1/2H |
| |
Expansion Slot(s) |
1 (total) / 1 (free) x PCI Express x8 - half-length 1 (total) / 1 (free) x PCI Express x16 (x8 mode) 2 (total) / 2 (free) x PCI Express x8 (x4 mode) 1 (total) / 1 (free) x PCI Express x8 1 (total) / 1 (free) x PCI - half-length 16 (total) / 14 (free) x memory - DIMM 240-pin 2 (total) / 1 (free) x processor - LGA1366 Socket |
| General |
| |
Type |
Server |
| |
Height |
44 cm |
| |
Hot-Swap Bays Qty |
8 |
| |
Front Accessible Bays Qty |
3 |
| |
Built-in Devices |
Led panel |
| |
Width |
21.8 cm |
| |
Colour |
Stealth black |
| |
Weight |
27.1 kg |
| |
Depth |
76.7 cm |
| |
Server Scalability |
2-way |
| |
Localisation |
EMEA |
| |
Product Form Factor |
Tower - 5U |
