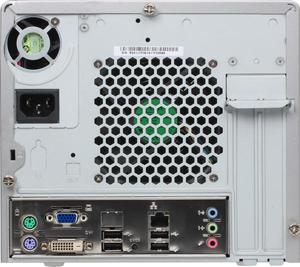

Shuttle XPC SG41J1-PLUS V2 silberShuttle XPC SG41J1-PLUS V2 silber
ID: 90384774, SKU: SG41J1PLUSV2
 |
 |
 |
 |
 |
 |
Sockel 775, Intel G41/ICH7, FSB1333, 2x DDR3 (Dual Channel) max. 8GB, PCIe (x16), PCI, 3x SATA, PATA, GB-LAN, 6x USB2.0, Intel GMA X4500, 250 Watt Netzteil, MiniPC
€ 128,90
Product is no longer
available
available
Description | |
| Description | Specifications | Reviews (1) | Q&A | Accessories | ↑ | |
This Mini-PC Barebone is an offspring of Shuttle's J series and has been completely redesigned from top to bottom. It combines for the first time the features of various entry-level models to enable the widest possible spectrum of applications. Uncompromising reliability and maximum compatibility are guaranteed by the G41 Express Chipset. SG41J1 Plus V2 supports dual channel DDR3 memory and modern processors.
- The SG41J1: a clean and modern look
Shuttle has always placed great emphasis on the interior and exterior aesthetics of the XPC, with the belief that a good blend of style and form factor allows the XPC to be attractive, versatile, and work well in almost any environment - whether the living room, bedroom, or office. With the SG41J1, Shuttle retains its trademark appearance and adds a clean, modern look to the front of the XPC. The SG41J1 will also be the first to bear the XPC logo, featuring a striking "X" mark to signify the evolution of the XPC product line. At the same time the logo works as a stylish illuminated power button. - Stealth bay for optical drive
The SG41J1's chassis clean facia derives from its engineered optical drive bays, which is hidden from view when not in use - providing superior style and visual appeal. - Small, but easy to install
Shuttle's XPCs offer the power of a desktop PC in a form factor one-third the size while using standard desktop components. Shuttle kept the concept of "future proofing" in mind when it designed the SG41J1. The meticulously designed layout features an interior cable management system with pre-installed cables that are routed and tied down at factory to reduce clutter, increase airflow, and ease component installation. Shuttle has developed the ease of installation to an Art of Perfection. - Supports dual-slot graphics cards
With a renewed mainboard layout, the SG41J1 Plus V2 is capable of running dual-slot PCI Express graphics cards which do not require additional power supply. - Supports Socket-775 CPU and DDR3
You can choose from a wide range of Socket 775 Intel processors starting from Celeron up to Quad Core with a maximum TDP wattage of 95W. Also the system memory can be installed according to your needs. - Supports one optical drive and two hard disks
Despite the small housing, users can install one optical drive and up to two hard disks into the SG41J1 Plus V2. But what about heat? Many of the clever design elements of the XPC get little attention. Intelligently-engineered airflow mechanics channels cool air to where it's needed most - protecting components and providing optimal performance. - Mini-ITX mainboard support
Shuttle expands the capabilities of its chassis, adding support for Mini-ITX mainboards. Now, for the first time, the Shuttle chassis can go beyond the Shuttle mainboard, so you can easily upgrade or downgrade the mainboard to your desire, without any modifications to the chassis. - Gigabit LAN Network
Today's media-rich communications across the Internet and within enterprises are creating demands towards clients in Local Area Networks. For that reason Shuttle uses the Gigabit LAN performance even in the business and entry-level segment of their XPC line. - Solid capacitors
Solid capacitors is used in the temperature sensitive part of the CPU voltage regulator. The lifespan of solid capacitors is in fact up to six times longer than the more common electrolytic capacitors.
Specifications | |
| Description | Specifications | Reviews (1) | Q&A | Accessories | ↑ | |
| Product Description | Shuttle XPC SG41J1 Plus V2 - no CPU | |
| EAN | 0811686003267 | |
| Form Factor | Mini PC | |
| Dimensions (WxDxH) | 21.5 cm x 32.5 cm x 19 cm | |
| Weight | 7 kg | |
| Processor | No CPU | |
| Hard Drive | None. | |
| Networking | Network adapter - Ethernet, Fast Ethernet, Gigabit Ethernet | |
| Power | AC 120/230 V | |
| RAM | 0 MB (installed) / 8 GB (max) - DDR3 SDRAM | |
| Storage Controller | Serial ATA (Serial ATA-300) ; IDE (ATA-100) | |
| Graphics Controller | Intel GMA X4500 | |
| Audio Output | Sound card - 5.1 channel surround | |
| Type | PC barebone | |
| Monitor | None. | |
| Processor Socket | LGA775 Socket | |
Shuttle XPC SG41J1-PLUS V2 silber received 1 ratings, 5 of 5 stars.
Panasonic VS Deutschland
on 24.01.2011 16:55:01 with5 of 5 stars
- kleines, übersichtliches Gehäuse, Powerausstattung möglich
Kleines Gehäuse, aber jede Menge Power möglich!
