Product Description |

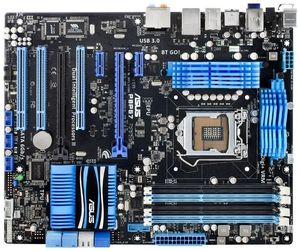

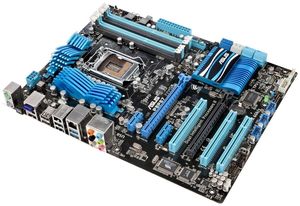

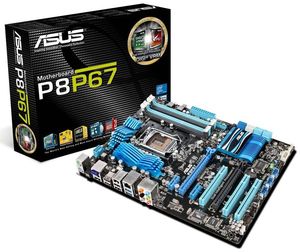

ASUS P8P67 (REV 3.1) - motherboard - ATX - LGA1155 Socket - P67 |
| |
EAN |
4719543180723
|
| |
Manufacturer Warranty |
3 years warranty (24 months implied warranty by computeruniverse  ) |
| |
Product Type |
Motherboard - ATX |
| |
Chipset Type |
Intel P67 Express |
| |
Compatible Processors |
Core i5, Core i3, Core i7 |
| |
Audio |
HD Audio (8-channel) |
| |
Processor Socket |
1 x LGA1155 Socket |
| |
Microsoft Certification |
Compatible with Windows 7 |
| |
Max Supported Memory |
32 GB |
| |
RAM Supported |
4 DIMM slots - DDR3 SDRAM , non-ECC , unbuffered |
| |
Storage Ports |
2 x SATA-600 (RAID), 2 x SATA-600, 4 x SATA-300 (RAID) |
| |
LAN |
Bluetooth, Gigabit Ethernet |
| |
USB / FireWire Ports |
2 x SuperSpeed USB + 1 x FireWire + 6 x Hi-Speed USB + (2 x SuperSpeed USB + 1 x FireWire + 6 x Hi-Speed USB via headers) |
|
| LAN |
| |
Network Controller |
Realtek RTL8111E |
| |
Network Interfaces |
Bluetooth, Gigabit Ethernet |
| Features |
| |
BIOS Type |
AMI |
| |
Sleep / Wake Up |
Wake on LAN (WOL), wake on ring (WOR) |
| |
BIOS Features |
DMI 2.0 support, WfM 2.0 support, Multilingual BIOS, ASUS Quiet Thermal Solution, ASUS EZ Flash 2, ACPI 2.0a support, SMBIOS 2.5 support, ASUS EFI BIOS |
| |
Hardware Features |
C.P.R. (CPU Parameter Recall), jack retasking, ASUS Anti-Surge Protection, MemOK!, ASUS Q-Design, 12+2 Phase Power Design, Q-DIMM, ASUS EZ DIY, Q-LED, Q-Slot, CrashFree BIOS 3, ASUS Q-Connector, audio jack detect technology, ASUS EPU (Energy Processing Unit), Intel Extreme Memory Profile (XMP) support, ASUS Fan Xpert, ASUS TurboV, ASUS BT GO!, Intel Turbo Boost Technology 2.0, ASUS TPU (TurboV Processing Unit), ASUS DIGI+ VRM, AMD Quad CrossFireX technology support |
| Audio |
| |
Compliant Standards |
DTS Surround Sensation UltraPC, High Definition Audio |
| |
Audio Codec |
Realtek ALC892 |
| |
Type |
HD Audio (8-channel) |
| Miscellaneous |
| |
Depth |
24.4 cm |
| |
Width |
30.5 cm |
| |
Included Accessories |
I/O back plate |
| |
Compatible with Windows 7 |
"Compatible with Windows 7" software and devices carry Microsoft’s assurance that these products have passed tests for compatibility and reliability with 32-bit and 64-bit Windows 7. |
| |
Compliant Standards |
Plug and Play, ACPI 2.0a, EuP Ready |
| |
Cables Included |
4 x Serial ATA cable
1 x USB / eSATA panel |
| |
Software Included |
Drivers & Utilities, ASUS Live Update, ASUS Auto Tuning, ASUS AI Suite II, ASUS AI Charger+ |
Manufacturer Warranty
(24 months implied warranty by computeruniverse ) |
| |
Service & Support |
3 years warranty |
| |
Service & Support Details |
Limited warranty - 3 years |
| Expansion / Connectivity |
| |
Power Connectors |
24-pin main power connector, 8-pin ATX12V connector |
| |
Expansion Slot(s) |
1 x processor - LGA1155 Socket
4 x memory - DIMM 240-pin
1 x PCI Express 2.0 x16
1 x PCI Express 2.0 x16 (x4 mode)
2 x PCI Express 2.0 x1
3 x PCI |
| |
Storage Interfaces |
Serial ATA-300 - connector(s): 4 x 7pin Serial ATA - 4 Device(s) - RAID 0 / RAID 1 / RAID 10 / RAID 5
Serial ATA-600 - connector(s): 2 x 7pin Serial ATA - 2 Device(s) - RAID 0 / RAID 1 / RAID 10 / RAID 5
Serial ATA-600 - connector(s): 2 x 7pin Serial ATA - 2 Device(s) |
| |
Interfaces |
1 x keyboard - generic - 6 pin mini-DIN (PS/2 style)
1 x mouse - generic - 6 pin mini-DIN (PS/2 style)
1 x IEEE 1394 (FireWire)
1 x network - Ethernet 10Base-T/100Base-TX/1000Base-T - RJ-45
2 x SuperSpeed USB 3.0 - 9 pin USB Type A
6 x Hi-Speed USB - 4 PIN USB Type A
1 x audio - SPDIF output - TOSLINK
1 x audio - line-out - mini-phone stereo 3.5 mm
1 x audio - line-In - mini-phone stereo 3.5 mm
1 x microphone - input - mini-phone 3.5mm
1 x audio - line-out (side surround) - mini-phone stereo 3.5 mm
1 x audio - line-out (rear) - mini-phone stereo 3.5 mm
1 x audio - line-out (centre/subwoofer) - mini-phone 3.5mm
2 x SuperSpeed USB 3.0 (internal)
6 x Hi-Speed USB (internal)
1 x IEEE 1394 (FireWire) (internal)
1 x serial - RS-232 (internal)
1 x audio - SPDIF output (internal)
1 x audio (internal) |
| Memory |
| |
Supported RAM (Registered or Buffered) |
Unbuffered |
| |
Max Supported Memory |
32 GB |
| |
Supported RAM Integrity Check |
Non-ECC |
| |
Supported RAM Technology |
DDR3 SDRAM |
| |
RAM Features |
Dual channel memory architecture, Intel Extreme Memory Profiles (XMP) |
| |
Supported RAM Speed |
1600 MHz, 1333 MHz, 1066 MHz |
| General |
| |
Max Processors Qty |
1 |
| |
Compatible Processors |
Core i5, Core i3, Core i7 |
| |
Processor Socket |
LGA1155 Socket |
| |
Chipset Type |
Intel P67 Express |
| |
Product Type |
Motherboard - ATX |
