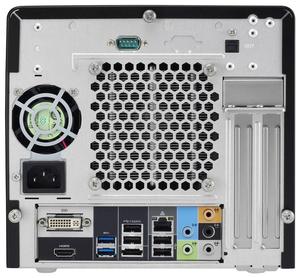

Shuttle XPC SH67H7Shuttle XPC SH67H7
ID: 90418069, SKU: XPC-SH67H7
 |
 |
 |
 |
 |
 |
 |
 |
Intel H67, Sockel 1155, 4x DDR3 max. 16GB, 1x PCIe 2.0 x16, 1x PCIe x1, 1x miniPCIe x1, 2x SATA3, 2x SATA2, 2x eSATA, 2x USB3.0, 6x USB2.0, GB-LAN, 1x HDMI, 1x DVI, Onboard-Sound, Small Form Factor Aluminiumgehäuse, 300 Watt Netzteil
€ 259,90
in stock
(only 2 pc)
dispatched in about 1-2 days
(only 2 pc)
dispatched in about 1-2 days
Description | |
| Description | Specifications | Reviews | Q&A | Accessories (12) | ↑ | |
The SH67H7 is with 1155 socket and large DDR3 RAM, split between four slots. Multi-monitoring is also possible thanks to the two digital HDMI and DVI monitor connections. The SH67H7 also comes with an array of ports including 4 x USB 3.0, 4 x USB 2.0, 2 x eSATA and S/PDIF available on the front and rear panels.
- The fast connection to external peripheral devices available to date
The USB 3.0 connectors of this model allow for data transfer of up to 5 Gbps. This enables external devices such as USB hard disks to be connected and run at nearly the same speed as their internal siblings. USB 3.0 is downward compatible so that also devices of previous USB generations can be hooked up. - HD audio
The superior high-definition sound not only gives that perfect cinema feeling at home, it also offers optimal sound quality for your Skype VoIP telephone conferencing. Conveniently located ports ensure ultimate user friendliness. - HDMI interface
Goodbye cable spaghetti! Modern flat-screen TVs and large-format TFT screens can be connected to this mini-PC with just a single thin cable. Often the audio output is also transferred in brilliant quality via the HDMI cable. - Cleverly hidden
In this model the ports and drives are hidden behind move-able panels that offer ideal protection from dust and ensure a clean, harmonious look. Not everyone needs to be able to see just what your mini-PC can do. - Optimal air flow
Warm air is transported out of the chassis by means of cleverly arranged components, which enables a large number of parts to be cooled simultaneously in the air flow. At no time can heat build up and adversely affect the stability of the system. - Communication in the fast lane
The integrated chipset opens up completely possibilities for communication with no restriction on the speed of data transfer. Say goodbye to information bottlenecks, whether in the company network or for home Internet access. - PCI Express technology
A fast x16-PCI-E slot enables the use of modern 3D graphics cards and other expansion cards that have to transfer huge amounts of data at ultra-rapid speeds. - External eSATA port
With this interface external hard drives can reach the same speeds as inbuilt versions. Just give it a try. - The super-fast RAM
This Shuttle mini-PC offers DDR3-triple-channel RAM with large memory. - Pre-assembled cabling saves time
The most important power and data cables are already routed and just have to be inserted into the relevant components. This saves valuable time when setting up the system. - Crystal-clear audio transmission
SPDIF allows the transmission of audio signals in digital quality. The sound of films, music and games is sent to the terminal via fiber-optic or coax cable without any data loss.
Specifications | |
| Description | Specifications | Reviews | Q&A | Accessories (12) | ↑ | |
| Product Description | Shuttle XPC SH67H7 - no CPU | |
| EAN | 0811686003427 | |
| Form Factor | Small form factor | |
| Dimensions (WxDxH) | 20.8 cm x 32.5 cm x 19.6 cm | |
| Weight | 3.6 kg | |
| Processor | No CPU | |
| Hard Drive | None. | |
| Networking | Network adapter - Ethernet, Fast Ethernet, Gigabit Ethernet | |
| Power | AC 120/230 V | |
| RAM | 0 MB (installed) / 16 GB (max) - DDR3 SDRAM | |
| Storage Controller | RAID (Serial ATA-600) ; RAID (Serial ATA-300 / eSATA-300) | |
| Graphics Controller | No graphics | |
| Audio Output | Sound card - 7.1 channel surround | |
| Type | PC barebone | |
| Monitor | None. | |
| OS Provided | No operating system | |
| Processor Socket | LGA1155 Socket | |
| Environmental Standards | ENERGY STAR Qualified | |
