Product Description |

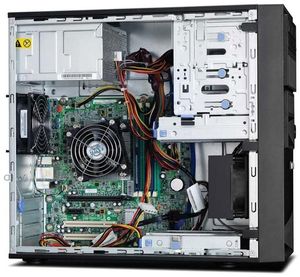

Lenovo ThinkServer TS130 1106 - Xeon E3-1235 3.2 GHz |
| |
EAN |
0645743582774
|
| |
Form Factor |
Tower |
| |
Manufacturer Warranty |
3 years warranty - on-site (24 months implied warranty by computeruniverse  ) |
| |
Dimensions (WxDxH) |
17.5 cm x 40.7 cm x 37.7 cm |
| |
Weight |
11.2 kg |
| |
Processor |
1 x Intel Xeon E3-1235 / 3.2 GHz (3.6 GHz) (Quad-Core) |
| |
Hard Drive |
2 x 500 GB - standard - Serial ATA-300 |
| |
Networking |
Network adapter - Ethernet, Fast Ethernet, Gigabit Ethernet |
| |
Power |
AC 120/230 V (50/60 Hz) |
| |
RAM |
4 GB (installed) / 16 GB (max) - DDR3 SDRAM - ECC - 1333 MHz - PC3-10600 |
| |
Storage Controller |
Serial ATA (Serial ATA-600) |
| |
Graphics Controller |
Intel HD Graphics P3000 Dynamic Video Memory Technology |
| |
Audio Output |
Sound card - stereo |
| |
Type |
Server |
| |
Localisation |
German / Germany |
| |
Cache Memory |
8 MB L3 Cache |
| |
Optical Storage |
DVD-ROM |
| |
Monitor |
None. |
| |
OS Provided |
No operating system |
| |
Cache Per Processor |
8 MB |
| |
Processor Main Features |
Hyper-Threading Technology, Intel Extended Memory 64 Technology, Intel Virtualization Technology, Intel Turbo Boost Technology 2 |
| |
Server Scalability |
1-way |
| |
Environmental Standards |
ENERGY STAR Qualified |
|
| Environmental Standards |
| |
ENERGY STAR Qualified |
Yes |
| Mainboard |
| |
Chipset Type |
Intel C206 |
| Audio Output |
| |
Type |
Sound card - integrated |
| |
Sound Output Mode |
Stereo |
| |
Compliant Standards |
High Definition Audio |
| Graphics Controller |
| |
Type |
Integrated |
| |
Digital Video Standard |
DisplayPort |
| |
Graphics Processor |
Intel HD Graphics P3000 Dynamic Video Memory Technology |
| Monitor |
| |
Monitor Type |
None. |
| Operating System / Software |
| |
OS Provided |
No operating system |
| |
Software |
ThinkServer EasyManage, ThinkServer EasyStartup, ThinkServer EasyUpdate |
| Optical Storage |
| |
Type |
DVD-ROM - Serial ATA |
| Cache Memory |
| |
Installed Size |
8 MB |
| |
Cache Per Processor |
8 MB |
| |
Type |
L3 Cache |
| Storage Controller |
| |
RAID Level |
RAID 0, RAID 1 |
| |
Type |
1 x Serial ATA - integrated |
| |
Controller Interface Type |
Serial ATA-600 |
| Power |
| |
Device Type |
Power supply |
| |
Power Provided |
280 Watt |
| |
Voltage Required |
AC 120/230 V (50/60 Hz) |
| Miscellaneous |
| |
Compliant Standards |
RoHS, 80 PLUS Bronze |
| |
Features |
Security lock slot (cable lock sold separately), power-on password, boot without keyboard or mouse, serial port I/O control, USB port control, boot sequence control, Intel Active Management Technology (iAMT), padlock loop |
| Networking |
| |
Networking |
Network adapter - integrated |
| |
Data Link Protocol |
Ethernet, Fast Ethernet, Gigabit Ethernet |
| |
Ethernet Controller(s) |
Intel 82579LM |
| Storage |
| |
Hard Drive |
2 x 500 GB - standard - Serial ATA-300 - 7200 rpm - RAID 1 - factory configured |
| RAM |
| |
Configuration Features |
1 x 4 GB |
| |
Installed Size |
4 GB / 16 GB (max) |
| |
Form Factor |
DIMM 240-pin |
| |
Memory Speed |
1333 MHz |
| |
Technology |
DDR3 SDRAM - ECC |
| |
Memory Specification Compliance |
PC3-10600 |
| |
Features |
Unbuffered, dual channel memory architecture |
| Processor |
| |
Installed Qty |
1 |
| |
Max Supported Qty |
1 |
| |
64-bit Computing |
Yes |
| |
Max Turbo Speed |
3.6 GHz |
| |
Number of Cores |
Quad-Core |
| |
Processor Main Features |
Hyper-Threading Technology, Intel Extended Memory 64 Technology, Intel Virtualization Technology, Intel Turbo Boost Technology 2 |
| |
Type |
Intel Xeon E3-1235 / 3.2 GHz |
Manufacturer Warranty
(24 months implied warranty by computeruniverse ) |
| |
Service & Support |
3 years warranty |
| |
Service & Support Details |
Limited warranty - 3 years - on-site |
| Expansion / Connectivity |
| |
Expansion Bays |
2 (total) / 1 (free) x front accessible - 5.25" x 1/2H
2 (total) / 0 (free) x internal - 3.5" x 1/3H |
| |
Expansion Slot(s) |
1 (total) / 0 (free) x processor - LGA1155 Socket
4 (total) / 3 (free) x memory - DIMM 240-pin
1 (total) / 1 (free) x PCI Express 2.0 x16 - half-length, full-height
1 (total) / 1 (free) x PCI Express 2.0 x1 - half-length, full-height
2 (total) / 2 (free) x PCI - half-length, full-height |
| |
Interfaces |
8 x Hi-Speed USB - 4 PIN USB Type A (2 front, 6 rear)
1 x serial - RS-232 - 9 pin D-Sub (DB-9)
1 x network - Ethernet 10Base-T/100Base-TX/1000Base-T - RJ-45
1 x audio - line-In - mini-phone stereo 3.5 mm
1 x audio - line-out - mini-phone stereo 3.5 mm
1 x microphone - input - mini-phone 3.5mm
1 x display / video - VGA - 15 pin HD D-Sub (HD-15)
1 x audio / video - DisplayPort - 20 pin DisplayPort |
| General |
| |
Type |
Server |
| |
Product Form Factor |
Tower |
| |
Localisation |
German / Germany |
| |
Built-in Devices |
Led panel |
| |
Width |
17.5 cm |
| |
Height |
37.7 cm |
| |
Depth |
40.7 cm |
| |
Weight |
11.2 kg |
| |
Colour |
Raven black |
| |
Server Scalability |
1-way |
| |
Embedded Security |
Trusted Platform Module (TPM 1.2) Security Chip |
