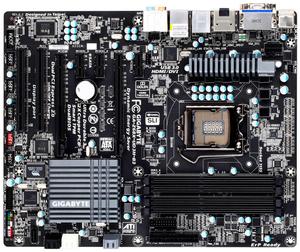

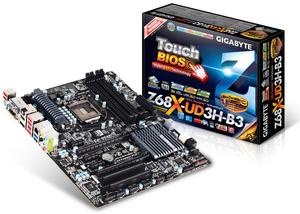

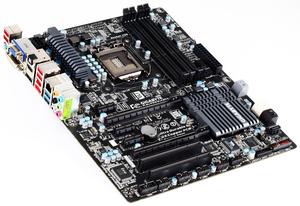

GIGABYTE GA-Z68X-UD3H-B3 S1155 ATX
ID: 90421268, SKU: GA-Z68X-UD3H-B3
 |
 |
 |
 |
 |
 |
 |
 |
- Socket 1155, ATX, Intel Z68, 4x DDR3 max. 32 GB
- 2x PCIe (x16) 2.0, 3x PCIe (x1), 2x PCI
- 3x SATA3 RAID, 4x SATA2 RAID
- 4x USB3.0, 12x USB2.0, 1x eSATA, 2x Firewire, GB-LAN
- Sound Onboard, SLI, CrossfireX
€ 115,90
in stock
(only 1 pc)
dispatched in about 1-2 days
(only 1 pc)
dispatched in about 1-2 days
Description | |
| Description | Specifications | Reviews (3) | Q&A | Accessories (136) | ↑ | |
Combining the advantages of the Intel P67 and H67 platforms in one complete package, the Gigabyte Z68 series offer the best of both worlds; users can take advantage of the system tuning and overclocking features found in the Intel P67 platform as well as the built-in visual features of the H67 platforms when combined with 2nd generation Intel Core processors.
Gigabyte Z68 series motherboards are equipped with the much anticipated Intel Smart Response Technology, allowing users to experience system performance similar to SSD only systems. Intel Smart Response technology works by using intelligent block-based caching of frequently used applications to improve system performance and responsiveness.
Gigabyte 6 series motherboards incorporate an Intel approved Intersil PWM controller that is VRD 12 (Voltage Regulator Down) compliant. This means that it offers features that include SerialVID (SVID) which transfers power management information between the processor and voltage regulator controller, allowing more robust and efficient signaling control between the CPU and PWM controller - hence, delivering a more energy efficient platform.
Gigabyte Z68 series motherboards are equipped with the much anticipated Intel Smart Response Technology, allowing users to experience system performance similar to SSD only systems. Intel Smart Response technology works by using intelligent block-based caching of frequently used applications to improve system performance and responsiveness.
Gigabyte 6 series motherboards incorporate an Intel approved Intersil PWM controller that is VRD 12 (Voltage Regulator Down) compliant. This means that it offers features that include SerialVID (SVID) which transfers power management information between the processor and voltage regulator controller, allowing more robust and efficient signaling control between the CPU and PWM controller - hence, delivering a more energy efficient platform.
- Gigabyte Touch BIOS
Navigating through the BIOS to change system settings can be a daunting task for users not familiar with control "F" functions and mouse-less navigation. While some EFI BIOS try to address this with a mouse friendly environment, many implementations still lack certain ease-of-use necessary for most people. With Gigabyte Touch BIOS, Gigabyte engineers have completely re-imagined how users can interact with their BIOS, allowing for a more intuitive user experience. In fact, with a touch screen monitor, Gigabyte Touch BIOS is as easy to use as most apps on your iPhone. - Supports Intel Smart Response technology
Gigabyte Z68 series motherboards are equipped with the much anticipated Intel Smart Response Technology, allowing users to experience system performance similar to SSD only systems. Intel Smart Response technology works by using intelligent block-based caching of frequently used applications to improve system performance and responsiveness. - 100% hardware VRD 12 compliant CPU power design
Gigabyte 6 series motherboards incorporate an Intel approved Intersil PWM controller that is VRD 12 (Voltage Regulator Down) compliant. This means that it offers features that include SerialVID (SVID) which transfers power management information between the processor and voltage regulator controller, allowing more robust and efficient signaling control between the CPU and PWM controller - hence, delivering a more energy efficient platform. - Driver MOSFETs - integration of VRM components
A traditional Voltage Regulator Module (VRM) consists of a choke, capacitors, MOSFETs and a driver IC. By incorporating the MOSFETs and driver IC in accordance with the Intel driver-MOSFET specification, we can achieve higher power transfer and increased efficiency at higher switching frequencies to satisfy the growing power requirements of today's processors. Driver-MOSFETs also help to reduce VRM real estate requirements in the CPU zone. - DualBIOS 3TB+ HDD support (Hybrid EFI technology)
Gigabyte DualBIOS is a patented technology that automatically recovers BIOS data when the main BIOS has crashed or failed. Featuring 2 physical BIOS ROMs integrated onboard, Gigabyte DualBIOS allows quick and seamless recovery from BIOS damage or failure due to viruses or improper BIOS updating. In addition, Gigabyte DualBIOS now supports 3TB+ (terabyte) hard drive booting without the need for partitioning, and enables more data storage on a single hard drive. - Ultra Durable 3
The Gigabyte Ultra Durable 3 design features twice the copper for both the power and ground layers of the PCB, dramatically lowering system temperature by efficiently spreading heat from critical areas of the motherboard (such as the CPU power zone) throughout the entire PCB. Gigabyte's Ultra Durable 3 also lowers the PCB impedance by 50%, which helps to reduce electrical waste and further lowers component temperatures. - SuperSpeed USB 3.0
Gigabyte motherboards boast SuperSpeed USB 3.0 technology made possible through an additional onboard host controller. With superfast transfer rates of up to 5 Gbps, users are able to experience a theoretical 10x improvement over USB 2.0. Additionally, backwards compatibility with USB 2.0 assures users of long term use of their legacy USB 2.0 devices. - 3x USB power boost
Gigabyte motherboards feature a 3x USB power boost, delivering greater compatibility and extra power for USB devices. Gigabyte's unique USB power design is also able to efficiently regulate output over the full voltage range, which greatly enhances USB device compatibility. In addition, dedicated lower resistance fuses ensure lower voltage drops, and provide more stable and plentiful power delivery. - HDMI
HDMI is a high-definition multimedia interface which provides up to 5 Gb/s video transmitting bandwidth and 8-channel high quality audio all through a single cable. Able to transmit superior, uncompressed digital video and audio, HDMI ensures the crispest rendering of digital content up to 1080p without the quality losses associated with analog interfaces and their digital-to-analog conversion. In addition, HDMI is compatible with HDCP (High-bandwidth Digital Content Protection), allowing the playback of Blu-ray/HD DVD and other protected media content. - DVI support
DVI (Digital Visual Interface) is a video interface standard designed for carrying uncompressed digital video data and to maximize the visual quality of digital display devices, such as LCD monitors, digital projectors, and so on. In addition, the DVI interface is compatible with HDCP (High-bandwidth Digital Content Protection). - Display port support
Selected Gigabyte motherboards feature display port, a next generation graphics display interface that delivers up to 10.8 Gbps of bandwidth over standard cables, providing billions of colors with the fastest refresh rates and the greatest color depths. - Multi-display support with CrossFireX and SLI
Flexible graphics capabilities supported for either CrossFireX or SLI action, delivering the ultimate in graphics performance for gaming enthusiasts who demand the highest frame rates without compromising on resolution. - Dolby Home Theater - enjoy a rich home theater surround sound experience
Dolby Home Theater places listeners in the middle of the action, giving their PCs a powerful set of tools to deliver a cinema-style experience in vivid surround sound.
Specifications | |
| Description | Specifications | Reviews (3) | Q&A | Accessories (136) | ↑ | |
| Product Description | Gigabyte GA-Z68X-UD3H-B3 (rev. 1.3) - motherboard - ATX - LGA1155 Socket - Z68 | |
| EAN | 4719331816285 | |
| Product Type | Motherboard - ATX | |
| Chipset Type | Intel Z68 Express | |
| Compatible Processors | Celeron, Core i5, Core i3, Core i7, Pentium G600 series, Pentium G800 series, Xeon E3-1200 series | |
| Audio | HD Audio (8-channel) | |
| Processor Socket | LGA1155 Socket | |
| Max Supported Memory | 32 GB | |
| RAM Supported | 4 DIMM slots - DDR3 SDRAM , non-ECC | |
| Storage Ports | 2 x SATA-600 (RAID), 2 x SATA-600 (RAID), 3 x SATA-300 (RAID), 1 x eSATA-300 | |
| LAN | Gigabit Ethernet | |
| USB / FireWire Ports | 2 x SuperSpeed USB + 1 x FireWire + 4 x Hi-Speed USB + (2 x SuperSpeed USB + 1 x FireWire + 8 x Hi-Speed USB via headers) | |
GIGABYTE GA-Z68X-UD3H-B3 S1155 ATX received 3 ratings, 5 of 5 stars.
DxKiller
on 13.01.2012 19:27:30 with5 of 5 stars
- Preis-Leistung, gute Verarbeitung, Praxistauglichkeit
Es hällt genau was es verspricht.
Tim I.
on 29.02.2012 14:43:01 with5 of 5 stars
- USB 3.0, eSATA, PCI Express 3.0, DVI-D, DisplayPort, HDMI etc.
- not noticed
goldie49
on 15.03.2012 17:38:43 with5 of 5 stars
Funktioniert einwandfrei! Super Mainboard!
Fazit: Ich kaufe gerne wieder hier ein.
