Product Description |

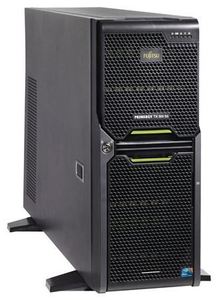

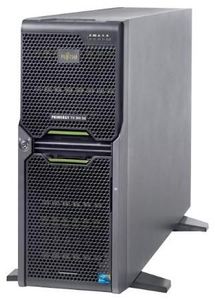

Fujitsu PRIMERGY TX300 S6 - Xeon E5645 2.4 GHz |
| |
EAN |
4051554303846
|
| |
Form Factor |
Tower - 4U |
| |
Manufacturer Warranty |
3 years warranty - on-site (24 months implied warranty by computeruniverse  ) |
| |
Dimensions (WxDxH) |
28.6 cm x 74.5 cm x 46.6 cm |
| |
Processor |
1 x Intel Xeon E5645 / 2.4 GHz (6-core) |
| |
Hard Drive |
None. |
| |
Networking |
Network adapter - Ethernet, Fast Ethernet, Gigabit Ethernet - Ethernet Ports : 2 x Gigabit Ethernet |
| |
Power |
AC 120/230 V (50/60 Hz) |
| |
RAM |
12 GB (installed) / 192 GB (max) - DDR3 SDRAM - Advanced ECC - 1333 MHz - PC3-10600 |
| |
Storage Controller |
RAID (Serial Attached SCSI 2) - PCI Express x8 (LSISAS2108) ; Serial ATA |
| |
Type |
Server |
| |
Cache Memory |
12 MB L3 Cache |
| |
Optical Storage |
DVD±RW (±R DL) / DVD-RAM |
| |
Monitor |
None. |
| |
Cache Per Processor |
12 MB |
| |
Server Storage Bays |
Hot-swap 3.5" |
| |
Server Scalability |
2-way |
| |
Power Redundancy |
Yes |
| |
Windows Server Certified |
This server is tested, tuned and certified for Windows Server 2008 R2 with OEM-branded hardware. Purchase a Reseller Option Kit to have your server solution pre-loaded. |
|
| Mainboard |
| |
Chipset Type |
Intel 5520 |
| Storage Controller (2nd) |
| |
Channel Qty |
2 |
| |
Type |
1 x Serial ATA - integrated |
| Graphics Controller |
| |
Type |
Integrated |
| Monitor |
| |
Monitor Type |
None. |
| Operating System / Software |
| |
Software |
ServerView |
| |
Windows Server Certified |
This server is tested, tuned and certified for Windows Server 2008 R2 with OEM-branded hardware. Purchase a Reseller Option Kit to have your server solution pre-loaded. |
| Optical Storage |
| |
Type |
DVD±RW (±R DL) / DVD-RAM - Serial ATA |
| Cache Memory |
| |
Installed Size |
12 MB |
| |
Cache Per Processor |
12 MB |
| |
Type |
L3 Cache |
| Storage Controller |
| |
Buffer Size |
512 MB |
| |
Channel Qty |
8 |
| |
Type |
1 x RAID - plug-in card - PCI Express x8 |
| |
RAID Level |
RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, RAID 50, RAID 60 |
| |
Controller Interface Type |
Serial Attached SCSI 2 |
| |
Storage Controller Name |
LSISAS2108 |
| Environmental Parameters |
| |
Min Operating Temperature |
10 °C |
| |
Max Operating Temperature |
35 °C |
| |
Humidity Range Operating |
10 - 85% |
| |
Sound Emission |
41 dBA |
| Power |
| |
Installed Qty |
2 |
| |
Max Supported Qty |
2 |
| |
Device Type |
Power supply - hot-plug |
| |
Power Redundancy |
Yes |
| |
Power Provided |
800 Watt |
| |
Voltage Required |
AC 120/230 V (50/60 Hz) |
| |
Power Redundancy Scheme |
1+1 |
| Miscellaneous |
| |
Features |
Redundant fans |
| |
Compliant Standards |
FCC Class A certified, CSA, TUV GS, C-Tick, BSMI CNS 13438 Class A, VCCI Class A ITE, CB, RoHS, WEEE |
| Networking |
| |
Networking |
Network adapter - integrated |
| |
Data Link Protocol |
Ethernet, Fast Ethernet, Gigabit Ethernet |
| |
Remote Management Protocol |
IPMI 2.0 |
| |
Ethernet Ports |
2 x Gigabit Ethernet |
| |
Ethernet Controller(s) |
Intel 82575EB |
| |
Remote Management Controller |
Integrated Remote Management Controller (iRMC S2) |
| Storage |
| |
Hard Drive |
None. |
| RAM |
| |
Installed Size |
12 GB / 192 GB (max) |
| |
Memory Speed |
1333 MHz |
| |
Memory Specification Compliance |
PC3-10600 |
| |
Technology |
DDR3 SDRAM - Advanced ECC |
| |
Features |
Registered, hot-swappable, Memory Mirroring, triple channel memory architecture |
| |
Configuration Features |
3 x 4 GB |
| Processor |
| |
Installed Qty |
1 |
| |
Max Supported Qty |
2 |
| |
Upgradability |
Upgradable |
| |
64-bit Computing |
Yes |
| |
Number of Cores |
6-core |
| |
Type |
Intel Xeon E5645 / 2.4 GHz |
Manufacturer Warranty
(24 months implied warranty by computeruniverse ) |
| |
Service & Support |
3 years warranty |
| |
Service & Support Details |
Limited warranty - 3 years - on-site |
| Expansion / Connectivity |
| |
Interfaces |
2 x serial - RS-232C - 9 pin D-Sub (DB-9)
1 x display / video - VGA - 15 pin HD D-Sub (HD-15)
8 x Hi-Speed USB - 4 PIN USB Type A (3 front, 4 rear, 1 internal)
2 x network - Ethernet 10Base-T/100Base-TX/1000Base-T - RJ-45
1 x management - Ethernet 10Base-T/100Base-TX - RJ-45 |
| |
Expansion Slot(s) |
2 (total) / 1 (free) x processor - LGA1366 Socket
18 (total) / 15 (free) x memory
2 (total) / 2 (free) x PCI Express 2.0 x8 - full-height
5 PCI Express 2.0 x8 - full-height (x4 mode (dual x8 mode if neighbour slot is empty)) |
| |
Expansion Bays |
3 (total) / 2 (free) x front accessible - 5.25" x 1/2H
6 (total) / 6 (free) x hot-swap - 3.5" x 1/3H |
| General |
| |
Type |
Server |
| |
Hot-Swap Bays Qty |
6 |
| |
Front Accessible Bays Qty |
3 |
| |
Width |
28.6 cm |
| |
Height |
46.6 cm |
| |
Depth |
74.5 cm |
| |
Server Scalability |
2-way |
| |
Product Form Factor |
Tower - 4U |
