Product Description |

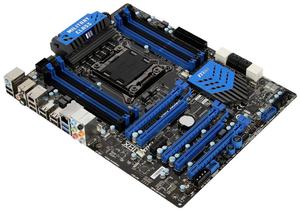

MSI X79A-GD65 (8D) Frio Adv - motherboard - ATX - LGA2011 Socket - X79 |
| |
EAN |
4719072244828
|
| |
Product Type |
Motherboard - ATX |
| |
Chipset Type |
Intel X79 Express |
| |
Compatible Processors |
Core i7 |
| |
Audio |
HD Audio (8-channel) |
| |
Processor Socket |
1 x LGA2011 Socket |
| |
Microsoft Certification |
Compatible with Windows 7 |
| |
Max Supported Memory |
128 GB |
| |
RAM Supported |
8 DIMM slots - DDR3 SDRAM unbuffered |
| |
Storage Ports |
2 x SATA-600 (RAID), 2 x SATA-600, 4 x SATA-300 (RAID) |
| |
LAN |
Gigabit Ethernet |
| |
USB / FireWire Ports |
2 x SuperSpeed USB + 1 x FireWire + 8 x Hi-Speed USB + (2 x SuperSpeed USB + 1 x FireWire + 4 x Hi-Speed USB via headers) |
|
| LAN |
| |
Network Interfaces |
Gigabit Ethernet |
| |
Network Controller |
Realtek RTL8111E |
| Features |
| |
BIOS Features |
DMI support, M-Flash, UEFI BIOS, MSI ClickBIOS II, MSI DrMOS II |
| |
Hardware Features |
Chassis intrusion detection, NVIDIA SLI Technology Support, USB Safeguard, audio jack detect technology, NVIDIA 3-way SLI Technology Support, MSI Active Phase Switching (APS), OC Genie II, MSI Winki 3, Hi-c CAP, Instant OC, Super Charger, MSI Military Class III, AMD CrossFireX technology support |
| Audio |
| |
Audio Codec |
Realtek ALC892 |
| |
Compliant Standards |
THX TruStudio Pro |
| |
Type |
HD Audio (8-channel) |
| Miscellaneous |
| |
Depth |
24.4 cm |
| |
Compliant Standards |
Plug and Play |
| |
Width |
30.5 cm |
| |
Compatible with Windows 7 |
"Compatible with Windows 7" software and devices carry Microsoft’s assurance that these products have passed tests for compatibility and reliability with 32-bit and 64-bit Windows 7. |
| |
Software Included |
Drivers & Utilities, MSI Live Update 5 |
| |
Included Accessories |
Thermaltake Frio Advanced Cooler |
| Expansion / Connectivity |
| |
Power Connectors |
24-pin main power connector, 8-pin ATX12V connector |
| |
RAID Features |
Intel Rapid Storage Technology |
| |
Storage Interfaces |
Serial ATA-300 - connector(s): 4 x 7pin Serial ATA - 4 Device(s) - RAID 0 / RAID 1 / RAID 10 / RAID 5 Serial ATA-600 - connector(s): 2 x 7pin Serial ATA - 2 Device(s) - RAID 0 / RAID 1 ASMedia ASM1061 : Serial ATA-600 - connector(s): 2 x 7pin Serial ATA - 2 Device(s) |
| |
Interfaces |
1 x keyboard / mouse - generic - 6 pin mini-DIN (PS/2 style) 1 x audio - SPDIF output - RCA 1 x audio - SPDIF output - TOSLINK 1 x IEEE 1394 (FireWire) - 6 PIN FireWire 1 x network - Ethernet 10Base-T/100Base-TX/1000Base-T - RJ-45 8 x Hi-Speed USB - 4 PIN USB Type A 2 x SuperSpeed USB 3.0 - 9 pin USB Type A 1 x audio - line-out - mini-phone stereo 3.5 mm 1 x audio - line-In - mini-phone stereo 3.5 mm 1 x microphone - input - mini-phone 3.5mm 1 x audio - line-out (side surround) - mini-phone stereo 3.5 mm 1 x audio - line-out (rear) - mini-phone stereo 3.5 mm 1 x audio - line-out (centre/subwoofer) - mini-phone 3.5mm 1 x audio (internal) 4 x Hi-Speed USB (internal) 2 x SuperSpeed USB 3.0 (internal) 1 x IEEE 1394 (FireWire) (internal) |
| |
Expansion Slot(s) |
1 x processor - LGA2011 Socket 8 x memory (1.5 V) - DIMM 240-pin 2 x PCI Express 3.0 x16 (x16 mode) 1 x PCI Express 3.0 x16 (x8 mode) 2 x PCI Express 2.0 x16 (x1 mode) 1 x PCI Express x1 |
| Memory |
| |
Supported RAM (Registered or Buffered) |
Unbuffered |
| |
Max Supported Memory |
128 GB |
| |
Supported RAM Technology |
DDR3 SDRAM |
| |
RAM Features |
Quad channel memory architecture |
| |
Supported RAM Speed |
1600 MHz, 1333 MHz, 1066 MHz |
| General |
| |
Max Processors Qty |
1 |
| |
Compatible Processors |
Core i7 |
| |
Product Type |
Motherboard - ATX |
| |
Chipset Type |
Intel X79 Express |
| |
Processor Socket |
LGA2011 Socket |
