Product Description |

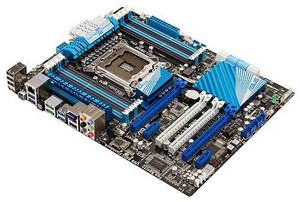

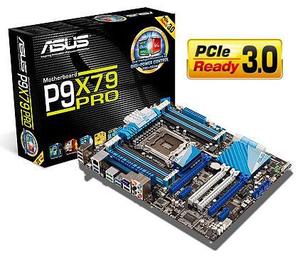

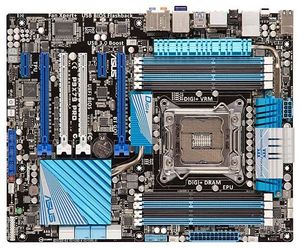

ASUS P9X79 PRO - motherboard - ATX - LGA2011 Socket - X79 |
| |
EAN |
4719543184530
|
| |
Manufacturer Warranty |
3 years warranty (24 months implied warranty by computeruniverse ) |
| |
Product Type |
Motherboard - ATX |
| |
Chipset Type |
Intel X79 Express |
| |
Compatible Processors |
Core i7 |
| |
Audio |
HD Audio (8-channel) |
| |
Processor Socket |
1 x LGA2011 Socket |
| |
Microsoft Certification |
Compatible with Windows 7 |
| |
Max Supported Memory |
64 GB |
| |
RAM Supported |
8 DIMM slots - DDR3 SDRAM , non-ECC , unbuffered |
| |
Storage Ports |
2 x SATA-600 (RAID), 2 x SATA-600, 4 x SATA-300 (RAID), 2 x powered eSATA-600 |
| |
LAN |
Bluetooth, Gigabit Ethernet |
| |
USB / FireWire Ports |
4 x SuperSpeed USB + 6 x Hi-Speed USB + (2 x SuperSpeed USB + 6 x Hi-Speed USB via headers) |
|
| LAN |
| |
Network Controller |
Intel 82579V |
| |
Network Interfaces |
Bluetooth, Gigabit Ethernet |
| Features |
| |
Sleep / Wake Up |
Wake on LAN (WOL), wake on ring (WOR) |
| |
BIOS Features |
DMI 2.0 support, WfM 2.0 support, Multilingual BIOS, ASUS MyLogo2, ASUS Quiet Thermal Solution, ASUS EZ Flash 2, ASUS O.C. Profile, ACPI 2.0a support, SMBIOS 2.6 support, USB BIOS Flashback, UEFI BIOS |
| |
Hardware Features |
Jack retasking, MemOK!, ASUS Q-Design, ASUS EZ DIY, CrashFree BIOS 3, ASUS Q-Connector, audio jack detect technology, ASUS EPU (Energy Processing Unit), ASUS Q-Shield, NVIDIA 3-way SLI Technology Support, Intel Extreme Memory Profile (XMP) support, ASUS TurboV, ASUS BT GO!, Intel Turbo Boost Technology 2.0, ASUS TPU (TurboV Processing Unit), ASUS DIGI+ VRM, ASUS SSD Caching, Dual Intelligent Processors 3, ASUS 8 + 2 Phase CPU Power Design, ASUS 2 + 2 Phase DRAM Power Design, ASUS BT Turbo Remote, Fanless Design Heat-pipe, ASUS Fan Xpert+, ASUS USB 3.0 Boost technology, AMD Quad CrossFireX technology support |
| Audio |
| |
Type |
HD Audio (8-channel) |
| |
Audio Codec |
Realtek ALC898 |
| |
Compliant Standards |
DTS Connect, High Definition Audio, DTS UltraPC II |
| Miscellaneous |
| |
Depth |
24.4 cm |
| |
Width |
30.5 cm |
| |
Included Accessories |
I/O back plate |
| |
Compatible with Windows 7 |
"Compatible with Windows 7" software and devices carry Microsoft’s assurance that these products have passed tests for compatibility and reliability with 32-bit and 64-bit Windows 7. |
| |
Compliant Standards |
Plug and Play, ACPI 2.0a |
| |
Cables Included |
6 x Serial ATA cable 1 x 3-way SLI bridge 1 x SLI bridge |
| |
Software Included |
Drivers & Utilities, ASUS EZ Flash 2, ASUS Auto Tuning, ASUS AI Suite II, ASUS AI Charger |
Manufacturer Warranty (24 months implied warranty by computeruniverse ) |
| |
Service & Support |
3 years warranty |
| |
Service & Support Details |
Limited warranty - 3 years |
| Expansion / Connectivity |
| |
Power Connectors |
24-pin main power connector, 8-pin ATX12V connector |
| |
Expansion Slot(s) |
1 x processor - LGA2011 Socket 8 x memory - DIMM 240-pin 3 x PCI Express 3.0 x16 (dual x16 mode; triple: x16, x8, x8 mode) 1 x PCI Express 3.0 x16 (x8 mode) 2 x PCI Express 2.0 x1 |
| |
Storage Interfaces |
Serial ATA-300 - connector(s): 4 x 7pin Serial ATA - 4 Device(s) - RAID 0 / RAID 1 / RAID 10 / RAID 5 Serial ATA-600 - connector(s): 2 x 7pin Serial ATA - 2 Device(s) - RAID 0 / RAID 1 / RAID 10 / RAID 5 Marvell 88SE9128 : Serial ATA-600 - connector(s): 2 x 7pin Serial ATA - 2 Device(s) ASMedia ASM1061 : Serial ATA-600 - connector(s): 2 x 11pin powered external SATA - 2 Device(s) |
| |
Interfaces |
1 x audio - SPDIF output - TOSLINK 6 x Hi-Speed USB - 4 PIN USB Type A 4 x SuperSpeed USB 3.0 - 9 pin USB Type A 1 x network - Ethernet 10Base-T/100Base-TX/1000Base-T - RJ-45 1 x audio - line-out - mini-phone stereo 3.5 mm 1 x audio - line-In - mini-phone stereo 3.5 mm 1 x microphone - input - mini-phone 3.5mm 1 x audio - line-out (side surround) - mini-phone stereo 3.5 mm 1 x audio - line-out (rear) - mini-phone stereo 3.5 mm 1 x audio - line-out (centre/subwoofer) - mini-phone 3.5mm 1 x audio - SPDIF output (internal) 6 x Hi-Speed USB (internal) 1 x SuperSpeed USB 3.0 - 19 pin USB 3.0 pin header (internal) 1 x audio (internal) |
| Memory |
| |
Supported RAM (Registered or Buffered) |
Unbuffered |
| |
Max Supported Memory |
64 GB |
| |
Supported RAM Integrity Check |
Non-ECC |
| |
Supported RAM Technology |
DDR3 SDRAM |
| |
Supported RAM Speed |
1600 MHz, 1333 MHz, 1066 MHz, 1866 MHz |
| |
RAM Features |
Intel Extreme Memory Profiles (XMP), quad channel memory architecture |
| General |
| |
Max Processors Qty |
1 |
| |
Compatible Processors |
Core i7 |
| |
Product Type |
Motherboard - ATX |
| |
Chipset Type |
Intel X79 Express |
| |
Processor Socket |
LGA2011 Socket |
