Product Description |

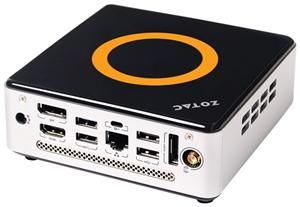

ZOTAC ZBOX nano VD01 - Nano X2 U4025 1.2 GHz |
| |
EAN |
4897022327675
|
| |
Form Factor |
Mini PC |
| |
Manufacturer Warranty |
2 years warranty (24 months implied warranty by computeruniverse  ) |
| |
Dimensions (WxDxH) |
12.7 cm x 12.7 cm x 4.5 cm |
| |
Processor |
1 x VIA Nano X2 U4025 / 1.2 GHz (Dual-Core) |
| |
Hard Drive |
None. |
| |
Networking |
Network adapter - Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, Bluetooth 3.0 |
| |
RAM |
0 MB (installed) / 4 GB (max) - DDR3 SDRAM |
| |
Storage Controller |
Serial ATA (Serial ATA-300) |
| |
Graphics Controller |
VIA Chrome9 HCM Shared Video Memory (UMA) |
| |
Audio Output |
Sound card |
| |
Type |
PC barebone |
| |
Localisation |
Europe |
| |
Monitor |
None. |
| |
OS Provided |
No operating system |
| |
Card Reader |
6 in 1 |
|
| Mainboard |
| |
Chipset Type |
VIA VX900H |
| Card Reader |
| |
Type |
6 in 1 card reader |
| |
Supported Flash Memory Cards |
Memory Stick, Memory Stick PRO, MultiMediaCard, SD Memory Card, xD-Picture Card, SDHC Memory Card |
| Audio Output |
| |
Type |
Sound card - integrated |
| Graphics Controller |
| |
Type |
Integrated |
| |
HDCP compatible |
Yes |
| |
Digital Video Standard |
High-Definition Multimedia Interface (HDMI), DisplayPort |
| |
Graphics Processor |
VIA Chrome9 HCM Shared Video Memory (UMA) |
| Monitor |
| |
Monitor Type |
None. |
| Operating System / Software |
| |
Software |
Drivers & Utilities |
| |
OS Provided |
No operating system |
| Storage Controller |
| |
Type |
Serial ATA - integrated |
| |
Controller Interface Type |
Serial ATA-300 |
| Power |
| |
Device Type |
Power adapter |
| Miscellaneous |
| |
Mounting Interface |
Yes |
| |
Included Accessories |
Remote control, wireless antenna, VESA wallmount adapter, USB IR receiver |
| Networking |
| |
Networking |
Network adapter - integrated |
| |
Wireless LAN Supported |
Yes |
| |
Compliant Standards |
IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, Bluetooth 3.0 |
| |
Data Link Protocol |
Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, Bluetooth 3.0 |
| Storage |
| |
Hard Drive |
None. |
| RAM |
| |
Installed Size |
0 MB / 4 GB (max) |
| |
Technology |
DDR3 SDRAM |
| |
Form Factor |
SO DIMM 204-pin |
| Processor |
| |
Installed Qty |
1 |
| |
Max Supported Qty |
1 |
| |
Multi-Core Technology |
Dual-Core |
| |
Type |
VIA Nano X2 U4025 / 1.2 GHz |
Manufacturer Warranty
(24 months implied warranty by computeruniverse ) |
| |
Service & Support |
2 years warranty |
| |
Service & Support Details |
Limited warranty - 2 years |
| Expansion / Connectivity |
| |
Expansion Bays |
1 (total) / 1 (free) x internal - 2.5" |
| |
Expansion Slot(s) |
1 (total) / 1 (free) x memory - SO DIMM 204-pin |
| |
Interfaces |
1 x storage - eSATA-300 - 7 pin external Serial ATA
1 x audio / video - HDMI - 19 pin HDMI Type A
1 x audio / video - DisplayPort - 20 pin DisplayPort
2 x Hi-Speed USB - 4 PIN USB Type A
2 x SuperSpeed USB 3.0 - 9 pin USB Type A
1 x headphones - output - mini-phone stereo 3.5 mm (1 in front)
1 x microphone - input - mini-phone 3.5mm (1 in front)
1 x network - Ethernet 10Base-T/100Base-TX/1000Base-T - RJ-45 |
| General |
| |
Width |
12.7 cm |
| |
Depth |
12.7 cm |
| |
Height |
4.5 cm |
| |
Localisation |
Europe |
| |
Recommended Use |
Home use |
| |
Type |
PC barebone |
| |
Product Form Factor |
Mini PC |
