Product Description |

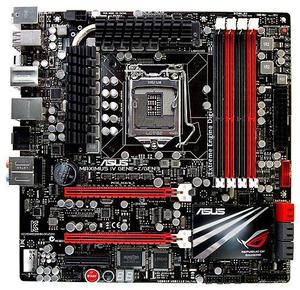

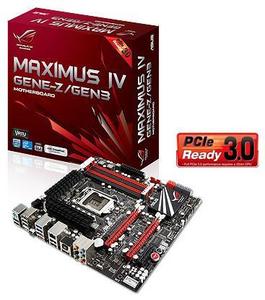

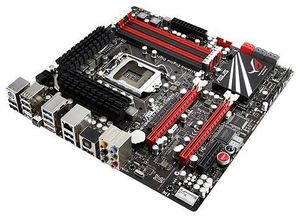

ASUS Maximus IV GENE-Z/GEN3 Republic of Gamers - motherboard - micro ATX - LGA1155 Socket - Z68 |
| |
EAN |
4719543182512
|
| |
Manufacturer Warranty |
3 years warranty (24 months implied warranty by computeruniverse  ) |
| |
Product Type |
Motherboard - micro ATX |
| |
Chipset Type |
Intel Z68 Express |
| |
Compatible Processors |
Celeron, Core i5, Core i3, Core i7, Pentium G600 series, Pentium G800 series |
| |
Audio |
HD Audio (8-channel) |
| |
Processor Socket |
1 x LGA1155 Socket |
| |
Max Supported Memory |
32 GB |
| |
RAM Supported |
4 DIMM slots - DDR3 SDRAM , non-ECC , unbuffered |
| |
Storage Ports |
2 x SATA-600 (RAID), 4 x SATA-300 (RAID), 2 x eSATA-300 |
| |
LAN |
Gigabit Ethernet |
| |
USB / FireWire Ports |
2 x SuperSpeed USB + 8 x Hi-Speed USB + (2 x SuperSpeed USB + 4 x Hi-Speed USB via headers) |
|
| LAN |
| |
Network Interfaces |
Gigabit Ethernet |
| Features |
| |
BIOS Type |
AMI |
| |
Sleep / Wake Up |
Wake on LAN (WOL), wake on ring (WOR) |
| |
BIOS Features |
DMI 2.0 support, WfM 2.0 support, Multilingual BIOS, ASUS MyLogo2, ASUS Quiet Thermal Solution, ASUS EZ Flash 2, ASUS O.C. Profile, ACPI 2.0a support, SMBIOS 2.5 support, ASUS EFI BIOS |
| |
Hardware Features |
Diagnostic LEDs, C.P.R. (CPU Parameter Recall), jack retasking, MemOK!, NVIDIA SLI Technology Support, ASUS Q-Design, GameFirst, ROG Connect, ASUS TurboV EVO, Q-DIMM, ASUS EZ DIY, Q-LED, Q-Slot, ProbeIt, ASUS Extreme Engine Digi+, CrashFree BIOS 3, ASUS Q-Connector, audio jack detect technology, ASUS CPU Level Up, ASUS COP EX, ASUS Q-Shield, ASUS Extreme Tweaker, ASUS Loadline Calibration, Intel Extreme Memory Profile (XMP) support, ASUS Fan Xpert, ASUS iROG, Intel Turbo Boost Technology 2.0, GPU.DIMM Post, Lucid Virtu, ROG BIOS Print, ROG CPU-Z, ASUS ROG Extreme OC, ASUS 8 Phase CPU Power Design, AMD CrossFireX technology support |
| Audio |
| |
Audio Codec |
SupremeFX X-Fi 2 |
| |
Type |
HD Audio (8-channel) |
| |
Compliant Standards |
High Definition Audio, THX TruStudio Pro, Creative ALchemy, EAX ADVANCED HD 5.0 |
| Miscellaneous |
| |
Width |
24.4 cm |
| |
Depth |
24.4 cm |
| |
Compliant Standards |
Plug and Play, ACPI 2.0a |
| |
Cables Included |
6 x Serial ATA cable
1 x SLI bridge |
| |
Software Included |
Drivers & Utilities, Kaspersky Anti-Virus (1 year subscription), ASUS AI Suite II, ASUS AI Charger+, ROG CPU-Z, Creative Sound Blaster X-Fi MB2, ROG GameFirst Utility, ROG Mem TweakIt Utility, DAEMON Tools Pro Standard |
Manufacturer Warranty
(24 months implied warranty by computeruniverse ) |
| |
Service & Support |
3 years warranty |
| |
Service & Support Details |
Limited warranty - 3 years |
| Expansion / Connectivity |
| |
Power Connectors |
24-pin main power connector, 8-pin ATX12V connector |
| |
RAID Features |
Intel Smart Response Technology |
| |
Storage Interfaces |
Serial ATA-600 - connector(s): 2 x 7pin Serial ATA - 2 Device(s) - RAID 0 / RAID 1 / RAID 10 / RAID 5
Serial ATA-300 - connector(s): 4 x 7pin Serial ATA - 4 Device(s) - RAID 0 / RAID 1 / RAID 10 / RAID 5
JMicron JMB362 : Serial ATA-300 - connector(s): 2 x 7pin external SATA - 2 Device(s) |
| |
Expansion Slot(s) |
1 x processor - LGA1155 Socket
4 x memory - DIMM 240-pin
2 x PCI Express 3.0 x16 (CrossFireX: x8, x8 mode; SLI: x8, x8 mode; single card: x16 mode)
1 x PCI Express 2.0 x4 |
| |
Interfaces |
1 x keyboard / mouse - generic - 6 pin mini-DIN (PS/2 style)
1 x display / video - HDMI - 19 pin HDMI Type A
1 x network - Ethernet 10Base-T/100Base-TX/1000Base-T - RJ-45
2 x SuperSpeed USB 3.0 - 9 pin USB Type A
8 x Hi-Speed USB - 4 PIN USB Type A
1 x audio - SPDIF output - TOSLINK
1 x audio - line-out - mini-phone stereo 3.5 mm
1 x audio - line-In - mini-phone stereo 3.5 mm
1 x microphone - input - mini-phone 3.5mm
1 x audio - line-out (side surround) - mini-phone stereo 3.5 mm
1 x audio - line-out (rear) - mini-phone stereo 3.5 mm
1 x audio - line-out (centre/subwoofer) - mini-phone 3.5mm
2 x SuperSpeed USB 3.0 (internal)
4 x Hi-Speed USB (internal)
1 x audio - SPDIF output (internal)
1 x audio (internal) |
| Memory |
| |
Supported RAM (Registered or Buffered) |
Unbuffered |
| |
Max Supported Memory |
32 GB |
| |
Supported RAM Integrity Check |
Non-ECC |
| |
Supported RAM Technology |
DDR3 SDRAM |
| |
RAM Features |
Dual channel memory architecture |
| |
Supported RAM Speed |
1600 MHz, 1333 MHz |
| General |
| |
Max Processors Qty |
1 |
| |
Processor Socket |
LGA1155 Socket |
| |
Product Type |
Motherboard - micro ATX |
| |
Chipset Type |
Intel Z68 Express |
| |
Compatible Processors |
Celeron, Core i5, Core i3, Core i7, Pentium G600 series, Pentium G800 series |
