Product Description |

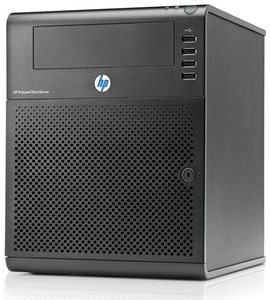

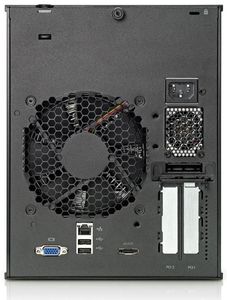

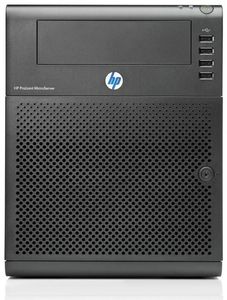

HP ProLiant MicroServer - Turion II Neo N40L 1.5 GHz |
| |
EAN |
0886111999781
|
| |
Form Factor |
Ultra micro tower |
| |
Manufacturer Warranty |
1 year warranty - on-site (24 months implied warranty by computeruniverse ) |
| |
Dimensions (WxDxH) |
21 cm x 26 cm x 26.7 cm |
| |
Weight |
6 kg |
| |
Processor |
1 x AMD Turion II Neo N40L / 1.5 GHz (Dual-Core) |
| |
Hard Drive |
None. |
| |
Networking |
Network adapter - PCI Express x1 - Ethernet, Fast Ethernet, Gigabit Ethernet |
| |
Power |
AC 120/230 V (50/60 Hz) |
| |
RAM |
4 GB (installed) / 8 GB (max) - DDR3 SDRAM - ECC - 800 MHz - PC3-10600 |
| |
Storage Controller |
Serial ATA (Serial ATA-300) |
| |
Graphics Controller |
Shared Video Memory (UMA) |
| |
Type |
Server |
| |
Localisation |
Europe |
| |
Cache Memory |
2 MB L2 Cache |
| |
Optical Storage |
DVD-RW |
| |
Monitor |
None. |
| |
Cache Per Processor |
2 MB (2 x 1 MB) |
| |
Server Scalability |
1-way |
| |
Windows Server Certified |
This server is tested, tuned and certified for Windows Server 2008 R2 with OEM-branded hardware. Purchase a Reseller Option Kit to have your server solution pre-loaded. |
|
| Graphics Controller |
| |
Graphics Processor |
Shared Video Memory (UMA) |
| |
Type |
Integrated |
| |
Max Allocated RAM Size |
128 MB |
| Monitor |
| |
Monitor Type |
None. |
| Operating System / Software |
| |
OS Certified |
Microsoft Windows Server, Red Hat Enterprise Linux |
| |
Windows Server Certified |
This server is tested, tuned and certified for Windows Server 2008 R2 with OEM-branded hardware. Purchase a Reseller Option Kit to have your server solution pre-loaded. |
| Optical Storage |
| |
Type |
DVD-RW - Serial ATA |
| Cache Memory |
| |
Installed Size |
2 MB |
| |
Type |
L2 Cache |
| |
Cache Per Processor |
2 MB (2 x 1 MB) |
| Storage Controller |
| |
RAID Level |
RAID 0, RAID 1 |
| |
Type |
1 x Serial ATA - integrated |
| |
Controller Interface Type |
Serial ATA-300 |
| Environmental Parameters |
| |
Humidity Range Operating |
10 - 90% |
| |
Min Operating Temperature |
10 °C |
| |
Max Operating Temperature |
35 °C |
| Power |
| |
Device Type |
Power supply |
| |
Power Provided |
150 Watt |
| |
Voltage Required |
AC 120/230 V (50/60 Hz) |
| Miscellaneous |
| |
Features |
System password |
| |
Compliant Standards |
ACPI 2.0, FCC Class B certified, EN 61000-3-2, EN55022, ICES-003, EN 61000-3-3, EN55024, CISPR 22, FCC CFR47 Part 15, IEC 60950-1, EN 60950-1, WEEE, BSMI CNS 13438 |
| Networking |
| |
Data Link Protocol |
Ethernet, Fast Ethernet, Gigabit Ethernet |
| |
Networking |
Network adapter - PCI Express x1 - integrated |
| |
Remote Management Protocol |
IPMI 2.0 |
| |
Compliant Standards |
IEEE 802.3, IEEE 802.3u, IEEE 802.3ab |
| |
Features |
Wake on LAN (WoL), PXE support |
| |
Ethernet Controller(s) |
HP NC107i |
| Storage |
| |
Hard Drive |
None. |
| RAM |
| |
Features |
Unbuffered |
| |
Memory Speed |
800 MHz |
| |
Configuration Features |
1 x 4 GB |
| |
Installed Size |
4 GB / 8 GB (max) |
| |
Form Factor |
DIMM 240-pin |
| |
Technology |
DDR3 SDRAM - ECC |
| |
Memory Specification Compliance |
PC3-10600 |
| Processor |
| |
Installed Qty |
1 |
| |
Max Supported Qty |
1 |
| |
64-bit Computing |
Yes |
| |
Number of Cores |
Dual-Core |
| |
Type |
AMD Turion II Neo N40L / 1.5 GHz |
Manufacturer Warranty (24 months implied warranty by computeruniverse ) |
| |
Service & Support |
1 year warranty |
| |
Service & Support Details |
Limited warranty - parts and labour - 1 year - on-site - response time: next day |
| Expansion / Connectivity |
| |
Interfaces |
1 x display / video - VGA - 15 pin HD D-Sub (HD-15) 6 x Hi-Speed USB - 4 PIN USB Type A (2 front, 4 rear) 1 x network - Ethernet 10Base-T/100Base-TX/1000Base-T - RJ-45 1 x storage - eSATA-300 - 7 pin external Serial ATA |
| |
Expansion Slot(s) |
1 (total) / 1 (free) x PCI Express 2.0 x16 - half-length, low-profile 1 (total) / 1 (free) x PCI Express 2.0 x1 - half-length, low-profile 2 (total) / 1 (free) x memory - DIMM 240-pin 1 (total) / 0 (free) x processor |
| |
Expansion Bays |
1 (total) / 0 (free) x front accessible - 5.25" x 1/2H 4 (total) / 4 (free) x internal - 3.5" LFF |
| General |
| |
Front Accessible Bays Qty |
1 |
| |
Recommended Use |
Small business, corporate business |
| |
Depth |
26 cm |
| |
Type |
Server |
| |
Internal Bays Qty |
4 |
| |
Localisation |
Europe |
| |
Width |
21 cm |
| |
Weight |
6 kg |
| |
Height |
26.7 cm |
| |
Server Scalability |
1-way |
| |
Embedded Security |
Trusted Platform Module (TPM 1.2) Security Chip |
| |
Product Form Factor |
Ultra micro tower |
