Product Description |

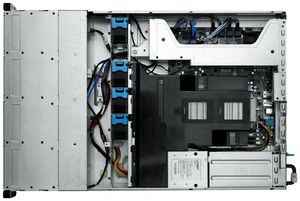

Lenovo ThinkServer RD240 1046 - Xeon E5607 2.26 GHz |
| |
EAN |
0886843278116
|
| |
Form Factor |
Rack-mountable - 2U |
| |
Manufacturer Warranty |
3 years warranty - on-site (24 months implied warranty by computeruniverse  ) |
| |
Dimensions (WxDxH) |
48.3 cm x 70 cm x 8.8 cm |
| |
Weight |
30 kg |
| |
Processor |
1 x Intel Xeon E5607 / 2.26 GHz (Quad-Core) |
| |
Hard Drive |
2 x 300 GB - hot-swap - Serial Attached SCSI |
| |
Networking |
Network adapter - Ethernet, Fast Ethernet, Gigabit Ethernet - Ethernet Ports : 2 x Gigabit Ethernet |
| |
Power |
AC 120/230 V (50/60 Hz) |
| |
RAM |
4 GB (installed) / 64 GB (max) - DDR3 SDRAM - ECC - 1066 MHz - PC3-10600 |
| |
Storage Controller |
RAID (Serial ATA-300 / SAS) - PCI Express (LSISAS1068E) |
| |
Graphics Controller |
ASPEED AST2050 |
| |
Type |
Server |
| |
Localisation |
German / Germany |
| |
Cache Memory |
8 MB |
| |
Optical Storage |
DVD±RW |
| |
Monitor |
None. |
| |
OS Provided |
No operating system |
| |
Cache Per Processor |
8 MB |
| |
Processor Main Features |
Intel Extended Memory 64 Technology, Intel Virtualization Technology |
| |
Server Storage Bays |
Hot-swap 3.5" |
| |
Server Scalability |
2-way |
| |
Power Redundancy |
Optional |
| |
Manufacturer Selling Program |
TopSeller |
| |
Video Memory |
8 MB |
|
| Mainboard |
| |
Chipset Type |
Intel 5500 |
| Graphics Controller |
| |
Type |
Integrated |
| |
Video Memory |
8 MB |
| |
Graphics Processor |
ASPEED AST2050 |
| Monitor |
| |
Monitor Type |
None. |
| Operating System / Software |
| |
OS Provided |
No operating system |
| Optical Storage |
| |
Type |
DVD±RW |
| Cache Memory |
| |
Installed Size |
8 MB |
| |
Cache Per Processor |
8 MB |
| Storage Controller |
| |
RAID Level |
RAID 0, RAID 1, RAID 1E |
| |
Controller Interface Type |
Serial ATA-300 / SAS |
| |
Type |
1 x RAID - integrated - PCI Express |
| |
Storage Controller Name |
LSISAS1068E |
| Power |
| |
Installed Qty |
1 |
| |
Max Supported Qty |
2 |
| |
Device Type |
Power supply |
| |
Power Redundancy |
Optional |
| |
Power Provided |
750 Watt |
| |
Voltage Required |
AC 120/230 V (50/60 Hz) |
| |
Power Redundancy Scheme |
1+1 (with optional power supply) |
| Miscellaneous |
| |
Compliant Standards |
RoHS |
| |
Manufacturer Selling Program |
TopSeller |
| |
Features |
Administrator password, boot without keyboard or mouse, serial port I/O control, USB port control, boot sequence control |
| Networking |
| |
Networking |
Network adapter - integrated |
| |
Data Link Protocol |
Ethernet, Fast Ethernet, Gigabit Ethernet |
| |
Remote Management Protocol |
IPMI 2.0 |
| |
Ethernet Ports |
2 x Gigabit Ethernet |
| |
Remote Management Controller |
Intel Baseboard Management Controller (BMC) |
| |
Ethernet Controller(s) |
2 x Intel 82574L |
| |
Features |
KVM over IP support |
| Storage |
| |
Hard Drive |
2 x 300 GB - hot-swap - Serial Attached SCSI |
| RAM |
| |
Configuration Features |
1 x 4 GB |
| |
Installed Size |
4 GB / 64 GB (max) |
| |
Memory Speed |
1066 MHz |
| |
Form Factor |
DIMM 240-pin |
| |
Features |
Registered, Memory Mirroring |
| |
Technology |
DDR3 SDRAM - ECC |
| |
Memory Specification Compliance |
PC3-10600 |
| Processor |
| |
Installed Qty |
1 |
| |
Max Supported Qty |
2 |
| |
Upgradability |
Upgradable |
| |
64-bit Computing |
Yes |
| |
Processor Main Features |
Intel Extended Memory 64 Technology, Intel Virtualization Technology |
| |
Number of Cores |
Quad-Core |
| |
Type |
Intel Xeon E5607 / 2.26 GHz |
Manufacturer Warranty
(24 months implied warranty by computeruniverse ) |
| |
Service & Support |
3 years warranty |
| |
Service & Support Details |
Limited warranty - parts and labour - 3 years - on-site |
| Expansion / Connectivity |
| |
Interfaces |
6 x Hi-Speed USB - 4 PIN USB Type A (2 front, 4 rear)
1 x display / video - VGA - 15 pin HD D-Sub (HD-15)
1 x serial - RS-232 - 9 pin D-Sub (DB-9)
2 x network - Ethernet 10Base-T/100Base-TX/1000Base-T - RJ-45 |
| |
Expansion Slot(s) |
8 (total) / 7 (free) x memory - DIMM 240-pin
2 (total) / 1 (free) x processor - LGA1366 Socket
1 (total) / 1 (free) x PCI Express 2.0 x8 - full-length, full-height
1 (total) / 1 (free) x PCI Express 2.0 x8 - full-length, full-height (x4 mode)
1 (total) / 1 (free) x PCI Express 2.0 x8 - half-length, full-height (x4 mode) |
| |
Expansion Bays |
8 (total) / 6 (free) x hot-swap - 3.5" x 1/3H
1 (total) / 0 (free) x front accessible - 5.25" x 1/6H (Slim Line) |
| General |
| |
Front Accessible Bays Qty |
1 |
| |
Colour |
Black |
| |
Type |
Server |
| |
Hot-Swap Bays Qty |
8 |
| |
Localisation |
German / Germany |
| |
Built-in Devices |
Led panel |
| |
Width |
48.3 cm |
| |
Depth |
70 cm |
| |
Height |
8.8 cm |
| |
Weight |
30 kg |
| |
Server Scalability |
2-way |
| |
Product Form Factor |
Rack-mountable - 2U |
